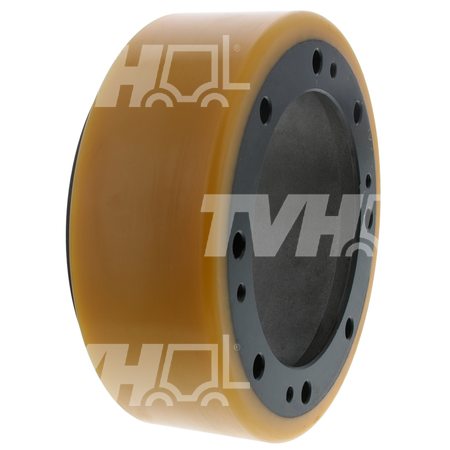

Antriebsrad
Prices excl. VAT plus shipping costs
Available immediately, delivery time: 2-3 days
| Art des Antriebsrads SRT-WH | Direktantriebsrad |
| Art des Antriebsrad mit Direktantrieb TY-DDWH | direct drive type 1 |
| Durchmesser des Rades D1 (mm) | 209.5 |
| Breite des Rades W1 (mm) | 75 |
| Durchmesser der Felge D2 (mm) | 185.7 |
| Breite der Felge W2 (mm) | 83.4 |
| Wellendurchmesser D8 (mm) | 135 |
| Größter Wellendurchmesser, nur falls abweichend AX2 D9 (mm) | 145 |
| Dicke des Flansches TH-FL (mm) | 14.8 |
| Material des Rades (gruppiert) MAT-WH | polyurethane |
| Form der Lauffläche SH-TRED | zylindrisch |
| Rad-Profil PROF-WH | glatt |
| Material der Felge MAT-RIM | gusseisen |
| Durchmesser der kleinsten inneren Felge D10 (mm) | 172 |
| Höhe der kleinsten inneren Felge H1 (mm) | 68.6 |
| Nut für Dichtungsring vorhanden SEAL-PR | NEIN |
| Nocken vorhanden CAM-PR | NEIN |
| Anzahl der Bolzenlöcher QTY-BO | 8 |
| Art der Bolzenlöcher TY-BO | gerade absenkung |
| Durchmesser der Bolzenlöcher D13 (mm) | 7 |
| Größter Durchmesser der Bolzenlöcher D14 (mm) | 11 |
| Höhe der Absenkung des Bolzenlochs H5 (mm) | 8.3 |
| Steigung des Kreisdurchmessers D15 (mm) | 163 |
| Mittenabstand der Bolzenlöcher C1 (mm) | 62.4 |
| Anzahl der Gewindebohrungen (TA1kleiner alsTA2kleiner alsTA3) QTY-TA1 | 4 |
| Art des Gewinde TA1 | M6 |
| Felge und Rad RIMTYR | NEIN |
| Kühlanlage SUF | JA |
| Eine Seite ist geschlossen CL | NEIN |
Daewoo
Daewoo was a large South Korean conglomerate headquartered in Seoul that was founded in 1967 under the name Daewoo Industrial. The company is active in many areas, such as mechanical engineering (including industrial trucks and forklifts), steel processing, shipbuilding, the weapons industry and the financial business. Daewoo Heavy Industries, the mechanical engineering part of the company, was taken over by Doosan in May 2005. The products such as machine tools are currently sold under the name Doosan-Daewoo by Doosan Infracore.
